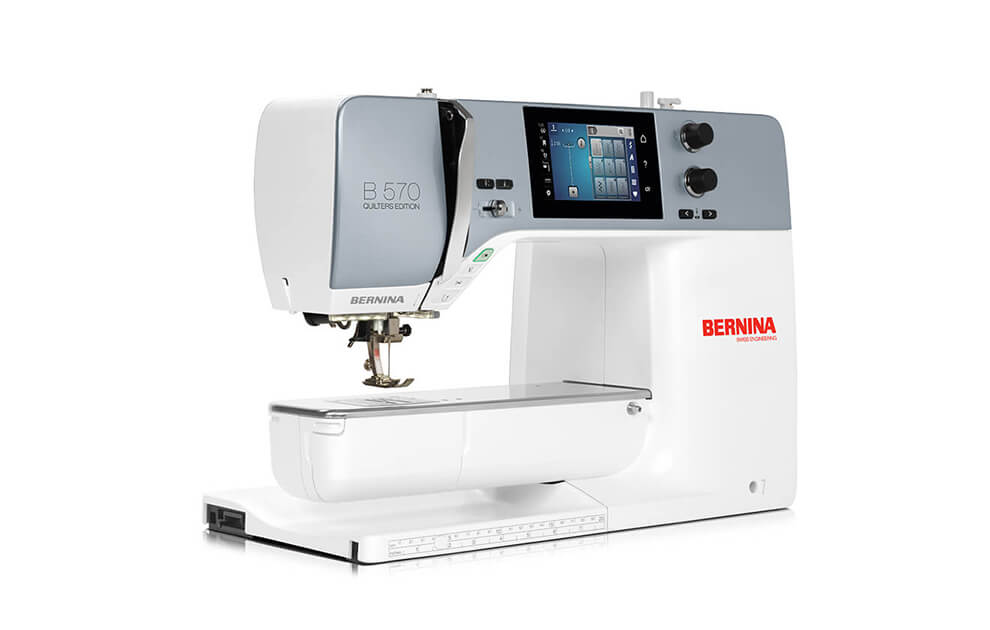

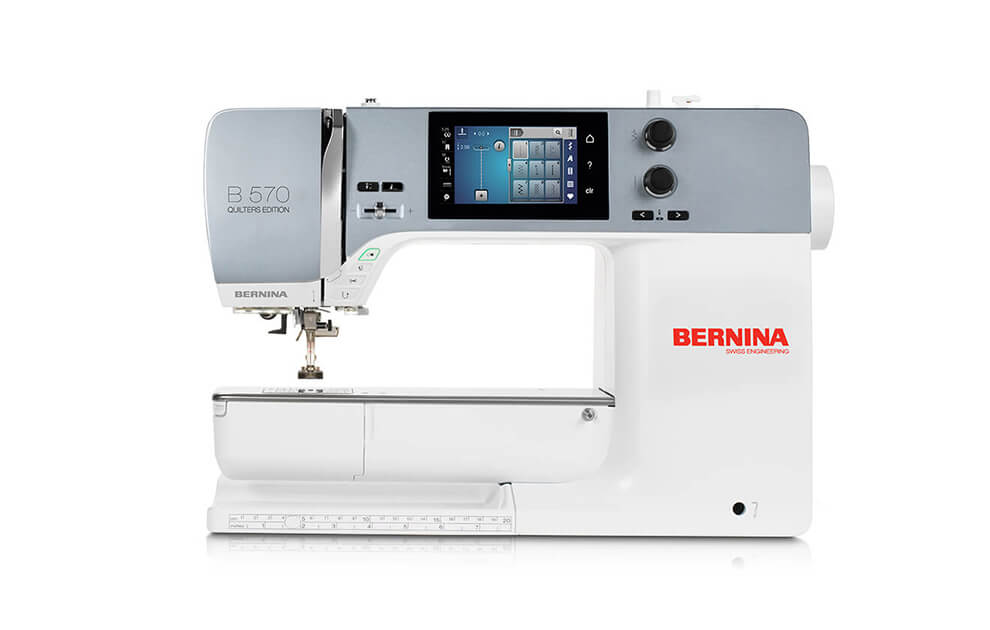

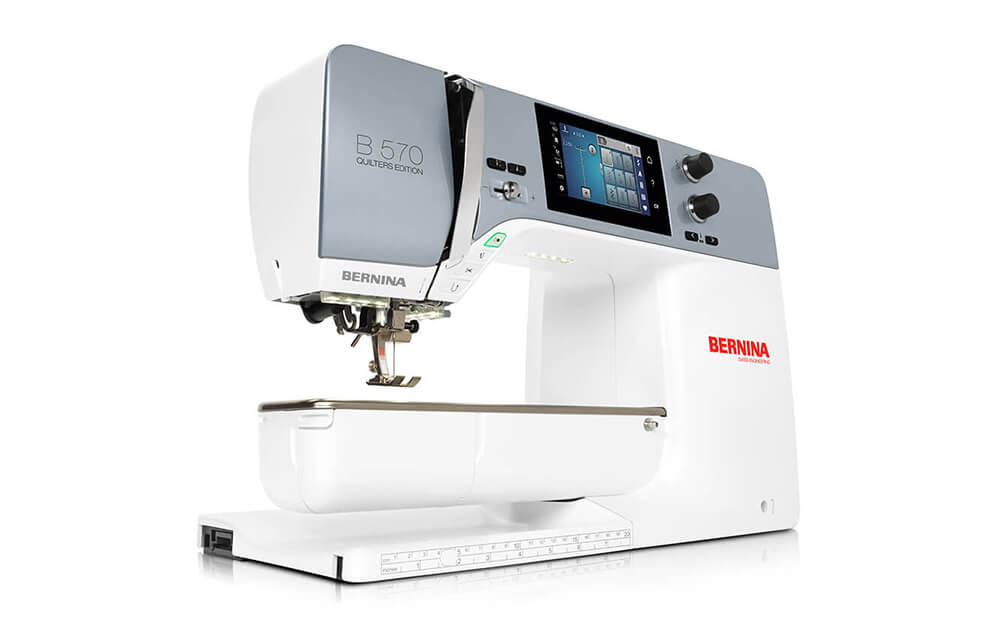

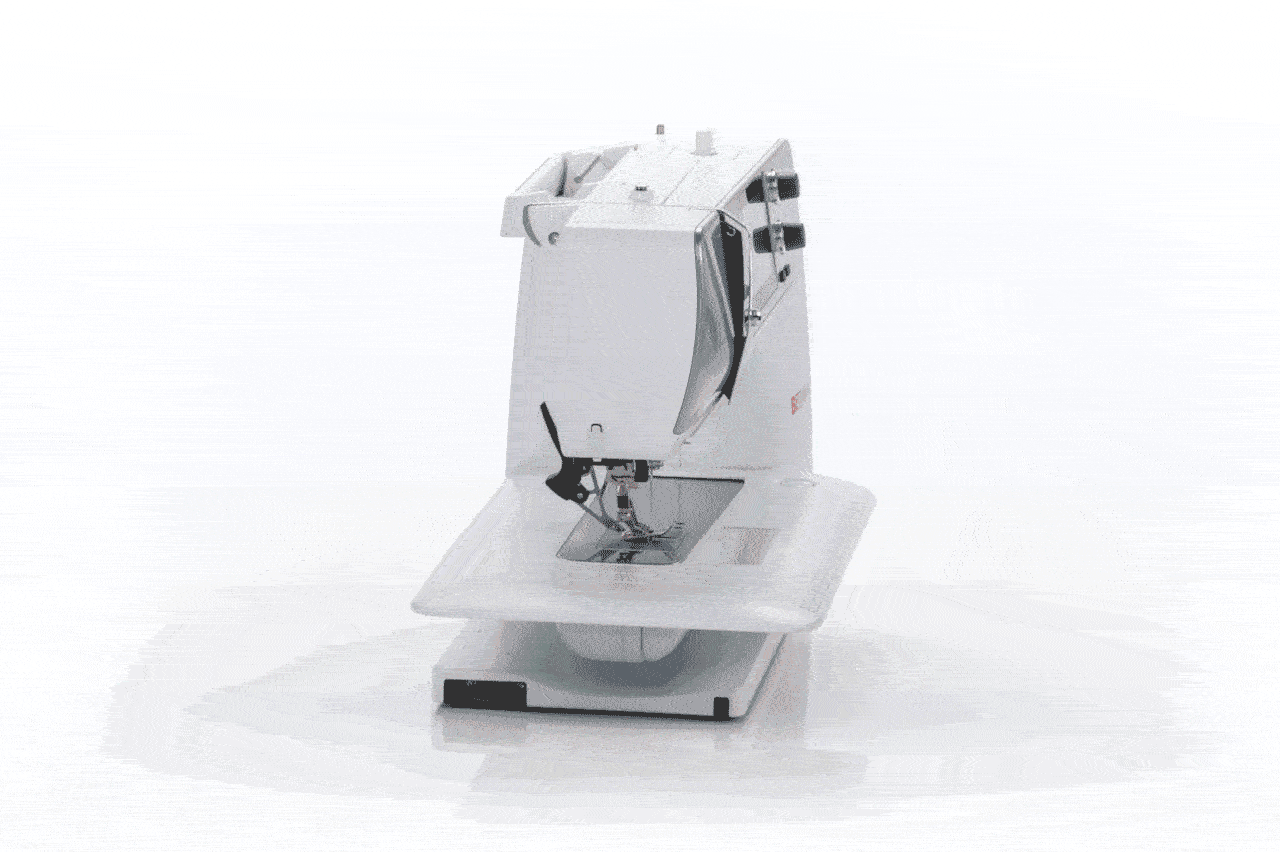

BERNINA 570 QE

Keep your hands on the fabric

• Adjust your quilt safely
• Tiny adjustments can be done quickly
• Rotate, turn & do appliqués easily

Thanks to the hover function the foot raises, but the needle stays in the fabric, making it easy to maneuver and turn as you appliqué and quilt.

Achieve perfect stitch results

• Achieve perfect, equal-length stitches
• Perfect results no matter which speed
• Perfect for free-motion sewing

The optional BERNINA Stitch Regulator guarantees precise stitch quality and results at any speed during free-motion quilting.

Enough space for bigger projects

• Handle big quilts with ease
• Live up to your quilt creativity
• Enough room for comfortable quilting

The B 570 QE with its extended freearm offers 8.5" right of the needle. Perfect to handle big quilting projects with the greatest of ease.

Quilt all materials with ease

• Enjoy superb fabric feed on both sides
• Quilt many layers without puckers
• Excellent for slippery or fine materials

The innovative BERNINA Dual Feed feeds the fabric evenly from above and below. It is easy to engage and tucks away when not in use.

Automatic features save time

• Thread is cut automatically
• Save time for your creative ideas
• More time to focus on your quilt

Thanks to the automatic thread cutter, your thread is cut with an easy one-button operation. Keeps your work flowing easily and saves time.

Quilters love Patchwork Foot #97D

• Designed for straight-stitching
• Ideal for sewing 1/4" seam allowances
• Extra insurance to experienced piecers

The Patchwork Foot #97D is the special accessory for the most accurate feeding and stitching when piecing patchwork blocks.

Sewing and Quilting

• Maximum sewing speed (stitches per minute): 1000
• Maximum stitch width in mm: 9
• Stitch length maximum in mm: 6
• Needle positions: 11
• Automatic buttonhole
• Manual multi-step buttonhole
• Import/Export Stitches via USB
• Memory (short-term/altered stitches)
• Creative consultant
• Drag & Drop
• Pattern repeat (up to 9): 1-9
• Pattern start/end function
• Pattern end programmable
• Pattern mirroring
• Elongation
• Triple Stitch
• Reverse sewing
• Automatic securing function
• BSR functionality, straight stitch and zigzag
• Start/stop button (stitching without foot control)
• Pivot / hover function
• Number of stitch patterns (incl. alphabet) total: 1450
• Sewing alphabets: 8
• Decorative stitches total: 450
• Button sew-on program
• Buttonholes (incl. eyelet) total: 16
• Utility stitches total: 25
• Quilting stitches total: 73
• Darning programs

Embroidery

• Maximum Embroidery Speed (Stitches per minute): 1000
• Embroidery Area 15.7" x 5.9"
• Freearm Embroidery
• Built-in Embroidery Designs: 250
• Embroidery Alphabets: 7
• On-screen Editing of Designs
• Duplicate/Add Designs
• Change Design Size Proportionally
• Change Design Size Non-Proportionally
• Move, Rotate, and Mirror
• WordArt
• Drag and Drop
• Absolute Check Design Positioning
• Check Design Size
• Adjust Stitch Density
• Change Stitch Type
• Change Thread Brand
• Basting
• Color Resequence
• Stitch Design as Single/Multi-Color
• Personal Memory for Saving Embroidery Designs
• Programmable Jump Stitch Cutting
• Smart Secure
• Invisible Secure
• Centering the Embroidery Design
• Thread Away Mode
• Switch Unit of Measurement
• Multi-format Reading
• Embroidery design formats: EXP, DST, PES, PEC, JEF, SEW, PCS, XXX
• Embroidery Design Import/Export via USB Interface
• Automatic hoop recognition
• View Stitch-out Time, Thread Colors, Size, Stitches
• Embroidery Sequence Control
• Position Recall
• Embroidery Module: opt.
• Embroidery Module M (SDT): optional

General Features

• Sewing space to the right of the needle: 8.5”
• Workspace Height: 4.3"
• Centrally Located Color Touch Screen: 4.3” / 10 cm
• Multi-function Knobs
• LED Sewing Light: 12
• Semi-automatic Needle Threader
• Manual Thread Cutters: 4
• Total Stitch Control
• BERNINA Adaptive Thread Tension
• BERNINA Dual Feed
• Hook system: BERNINA Hook
• Jumbo Bobbin with 70 % more Capacity
• Bobbin Winding while Sewing/Embroidering
• Powerful DC Motor
• Hammer Mode
• BERNINA Free Hand System (FHS)
• Programmable BERNINA Foot Control
• Thread-up Command
• Automatic Presser Foot Lifter
• Automatic Thread Cutter
• Adjustable Presser Foot Pressure
• Needle Reminder
• Lower Thread Sensor
• Upper Thread Sensor
• Tutorial
• On-screen Help
• eco Mode
• Retractable Feed Dog
• Slide speed control
• Machine weight: 24.2 lb
• Machine size: 18.1″ / 7.9″ / 12.9″

Standard Accessories

• 4 Bobbins in the accessory, 1 bobbin in the bobbin case : The bobbins are filled with the lower thread.
• 2 Foam pads: The foam pad prevents the thread from getting hooked at the spool pin.
• Selection of needles: The needle assortment contains different versions and sizes of needles for all the common applications.
• Soft Cover with pocket: The soft cover protects from dust and contamination.
• 3 Spool discs: Spool discs hold the thread spool in place for proper release of thread from the spool.
• Foot control: Via the foot control the machine is started and stopped. The speed of the machine is also controlled via the foot control. Always use the foot control of the type LV1 with this machine.
• Power cable: The power cable connects the machine with the power supply system.
• Brush: The brush is used to clean the feed dog and the hook area.
• Screwdriver red: The red screwdriver is supplied as an all-round tool.
• Height compensation tool: The height compensation tool levels an angled position of the presser foot sole when sliding over thick seams.
• Seam ripper: The seam ripper is an indispensable tool to ando stitches or to cut buttonholes open.

Other accessories

Reverse Pattern Foot #1C

Reverse Pattern Foot #1D

Overlock Foot #2A

Buttonhole Foot with Slide #3A

Zipper Foot #4D

Open Embroidery Foot #20C

The Patchwork Foot #97D

Freearm Slide-on Table

Knee lifter/Free-Hand System (FHS)

Touchscreen Pen for 4 and 5 Series

Sewing Machine Oil

BERNINA Accessories Box

User Manual - BERNINA 570 QE

Product Brochure

Warranty

This warranty shall extend for a period of:

2  Years: in the case of electrical parts

5  Years: in the case of printed circuit boards

20 Years: in the case of mechanical parts from the date of purchase of the product.
