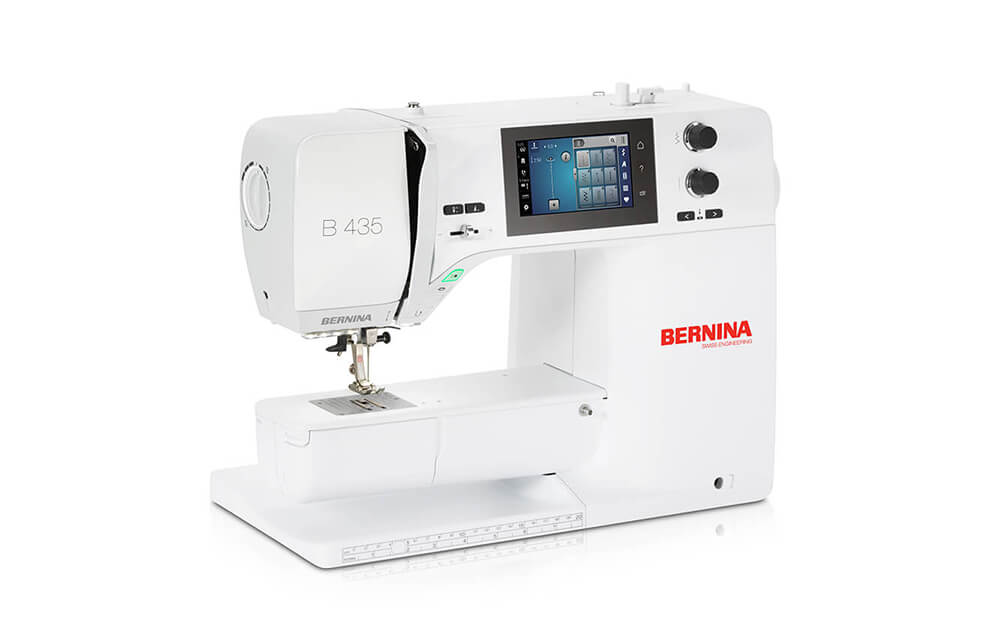

BERNINA 435

Perfect stitches are sew easy

• Sew perfect stitches with 5.5 mm stitch width
• Jumbo bobbin for fewer interruptions
• Front-load bobbin for easy thread changes

The BERNINA Hook makes stitches precise, consistent and fast with a maximum speed of 900 stitches per minute.

Easy threading? Yes please!

• No more tedious threading
• Keep calm and thread on
• Needle threads fast and easy

The semi-automatic Needle Threader makes threading easier than ever. Watch our helpful video to see just how it’s done.

Lots of stitches. Lots of letters.

• Huge selection of stitches & alphabets
• Three different alphabets
• 150 different decorative stitches

Finding a variety of stitches and letters is easy. Choosing your favorite, not so much.

Big enough for big projects

• All the space you need to create big
• Slide-on extension table included
• No limits to your big ideas

The extended freearm offers 7 inches to the right of the needle and makes room for projects, quilts and even more creativity.

Easy to navigate touch screen

• Modern color touch screen
• Easy to use with simple navigation
• On-screen support when needed

The on-screen, there-when-you-need-it, Sewing Consultant helps you find the right settings. Make suggested adjustments quickly with the Multi-function knobs.

Adjustable Presser Foot Pressure

• Increase pressure for thin materials
• Reduce pressure for thick materials
• Sew any material with ease and confidence

Let the adjustable foot do the heavy or light lifting. Easily adjust for the ideal pressure for the selected material.

Sewing and Quilting

• Maximum sewing speed (stitches per minute): 900
• Maximum stitch width in mm: 5.5
• Stitch length maximum in mm: 6
• Needle positions: 11
• Automatic buttonhole
• Manual multi-step buttonhole
• Import/Export Stitches via USB
• Memory (short-term/altered stitches)
• Creative consultant
• Drag & Drop
• Pattern repeat (up to 9): 1-9
• Pattern start/end function
• Pattern end programmable
• Pattern mirroring
• Reverse sewing
• Automatic securing function
• Start/stop button (stitching without foot control)
• Number of stitch patterns (incl. alphabet) total: 650
• Sewing alphabets: 3
• Decorative stitches total: 150
• Button sew-on program
• Buttonholes (incl. eyelet) total: 9
• Utility stitches total: 29
• Quilting stitches total: 13
• Darning programs: 2

General Features

• Sewing space to the right of the needle: 7”
• Workspace Height: 4.3"
• Centrally Located Color Touch Screen: 4.3” / 10 cm
• Multi-function Knobs
• LED Sewing Light: 8
• Semi-automatic Needle Threader
• Manual Thread Cutters: 4
• Total Stitch Control
• BERNINA Adaptive Thread Tension
• Hook system: BERNINA Hook
• Jumbo Bobbin with 70 % more Capacity
• Bobbin Winding while Sewing/Embroidering
• Powerful DC Motor
• Hammer Mode
• BERNINA Free Hand System (FHS)
• Programmable BERNINA Foot Control
• Thread-up Command
• Automatic Thread Cutter
• Adjustable Presser Foot Pressure
• Needle Reminder
• Tutorial
• On-screen Help
• Retractable Feed Dog
• Slide speed control
• Machine weight: 20.9 lb
• Machine size: 16.6" / 7.9" / 12.9"

Standard Accessories

• 4 Bobbins in the accessory, 1 bobbin in the bobbin case : The bobbins are filled with the lower thread.
• 1 Foam pads: The foam pad prevents the thread from getting hooked at the spool pin.
• Selection of needles: The needle assortment contains different versions and sizes of needles for all the common applications.
• Soft Cover with pocket: The soft cover protects from dust and contamination.
• 3 Spool discs: Spool discs hold the thread spool in place for proper release of thread from the spool.
• Accessory bag: The accessory bag serves the purpose to store the supplied accessories as well as the optional accessories.
• Foot control: Via the foot control the machine is started and stopped. The speed of the machine is also controlled via the foot control. Always use the foot control of the type LV1 with this machine.
• Power cable: The power cable connects the machine with the power supply system.
• Brush: The brush is used to clean the feed dog and the hook area.
• Screwdriver red: The red screwdriver is supplied as an all-round tool.
• Height compensation tool: The height compensation tool levels an angled position of the presser foot sole when sliding over thick seams.
• Seam ripper: The seam ripper is an indispensable tool to undo stitches or to cut buttonholes open.

Other accessories

Reverse Pattern Foot #1

Overlock Foot #2

Buttonhole Foot with Slide #3A

Zipper Foot #4

Blindstitch Foot #5

Freearm Slide-on Table

Sewing Machine Oil

User Manual - BERNINA 435

Product Brochure

Warranty

This warranty shall extend for a period of:

2  Years: in the case of electrical parts

5  Years: in the case of printed circuit boards

20 Years: in the case of mechanical parts from the date of purchase of the product.
